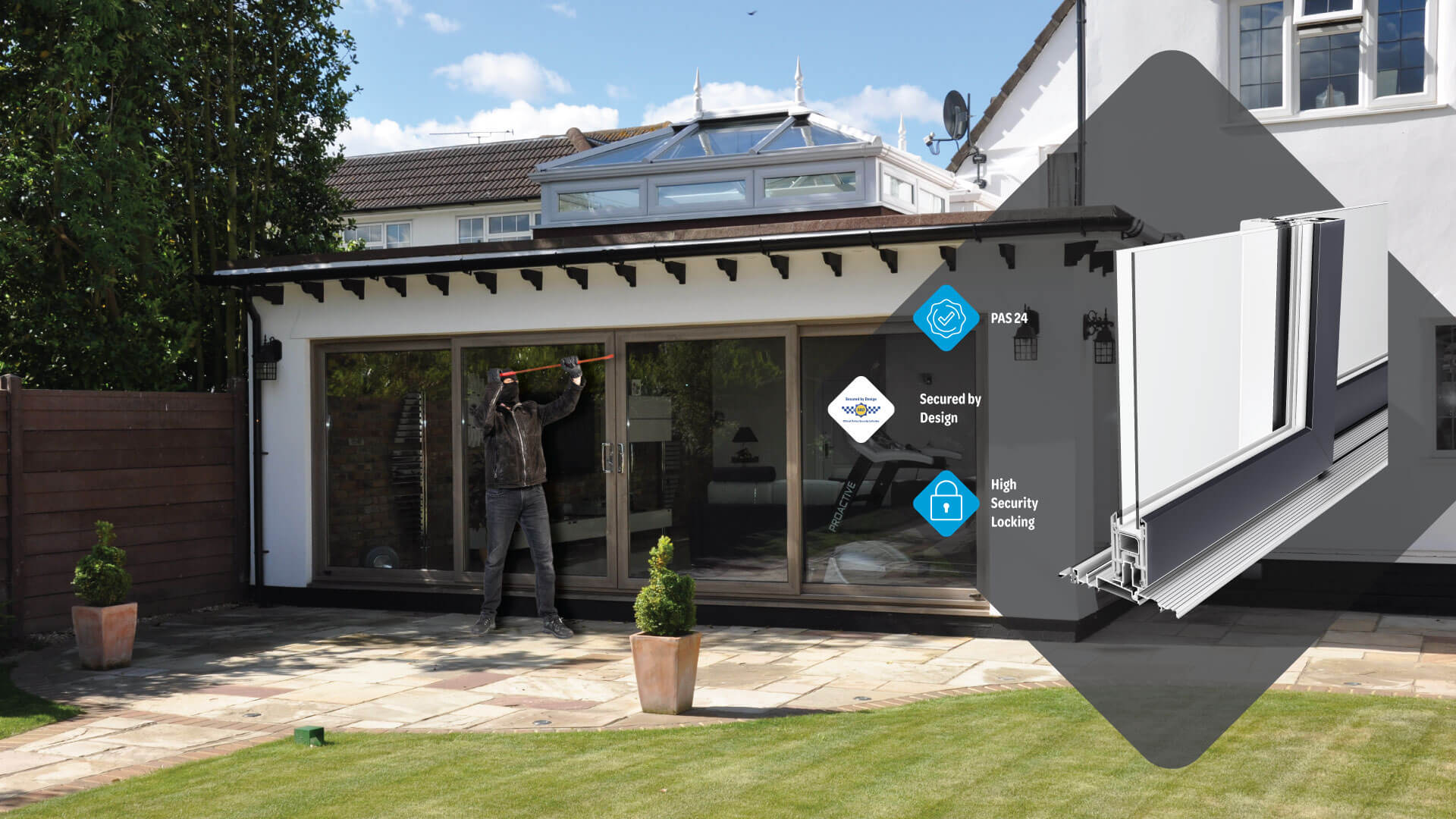

Enhanced Security to PAS 24 & Secured By Design

PREV
NEXT

The Patio Door System has been designed for practicality and performance. The sliding design enables you to maximise the view of the outside and benefit from more light within the property.

Benefits

Patio Doors

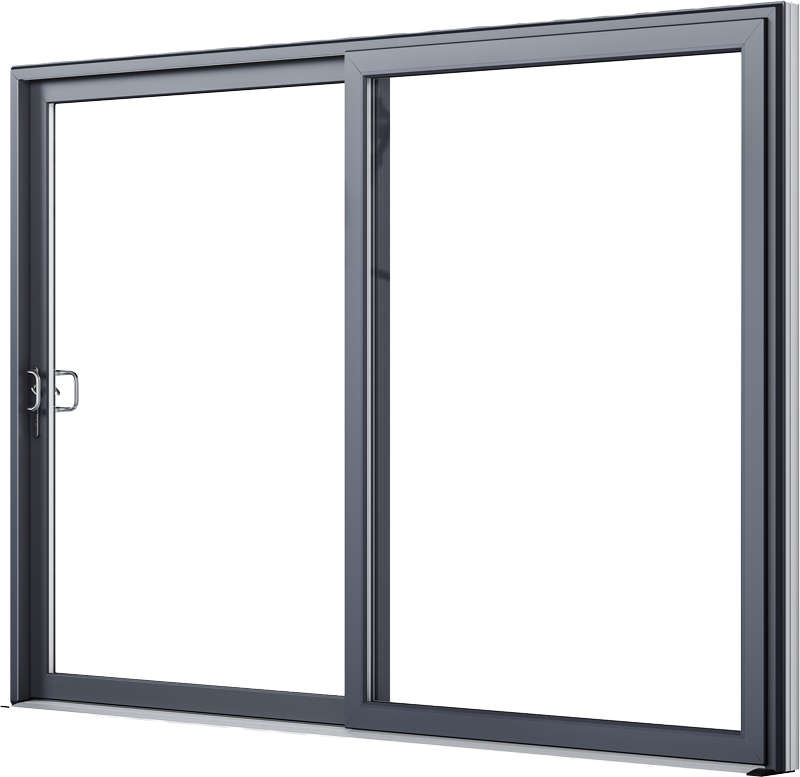

MASTERslide offers a high performance, secure and visually stunning PVCu sliding door option that's designed for hassle-free operation and maintenance.

The slimline package with slim sight lines is available in a number of configurations with 2, 3 or 4 pane options, with the ability to create a span of up to 5500mm.

The MASTERslide Patio Door System is a sliding patio door system with both sculptured and chamfered variations. The multi-chambered system has been intelligently designed to meet all requirements for improved thermal efficiency.

The MASTERslide Patio Door System benefits from large reinforcement chambers, where Selecta steel sections can be inserted for additional strength and rigidity.

The MASTERslide Patio Door System also offers enhanced security options and when correctly specified, with the doors PAS24, Secured by Design and Building Regulation Document Q and M compliant.

FABRICATOR & FITTER FRIENDLY

100% LEAD FREE

INNOVATIVE DESIGN

NEW! MASTERslide Patio Door Upgrades

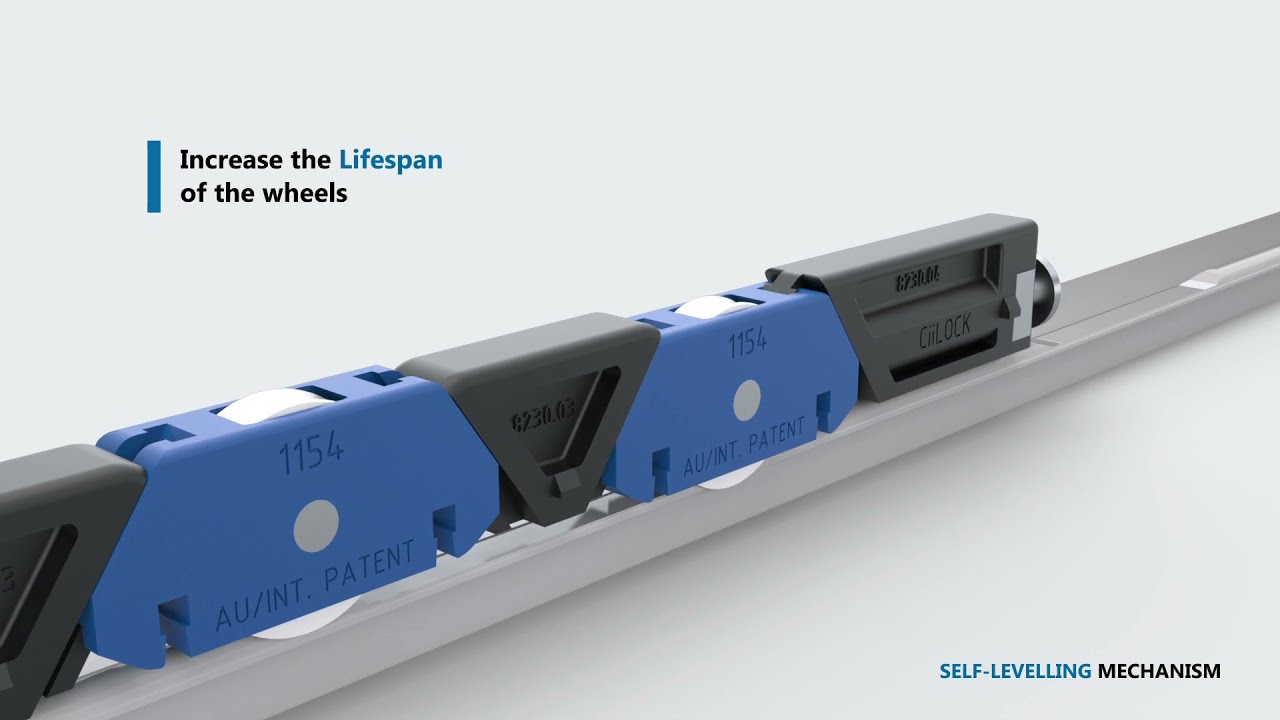

NEW PATIO DOOR ROLLERS

A video of our new self levelling rollers in action for a smoother, gliding patio door.

The benefits over the other wheels on the market are:

  • the unique self-levelling technology
  • engineered polymer wheels for less friction and less wear on the track
  • better thermal capacity
  • 10mm adjustment
  • tested up to 50,000 cycles
  • 7 year warranty
  • 500 hours salt spray

Over the last few years the patio door has had some kind of renaissance and they now seem to be the cost effective solution to creating a wall of glass. So, what we have done at Selecta is bring the MASTERslide patio door bang up-to-date and a more attractive proposition for the homeowner, whilst also being more fabricator and fitter friendly.

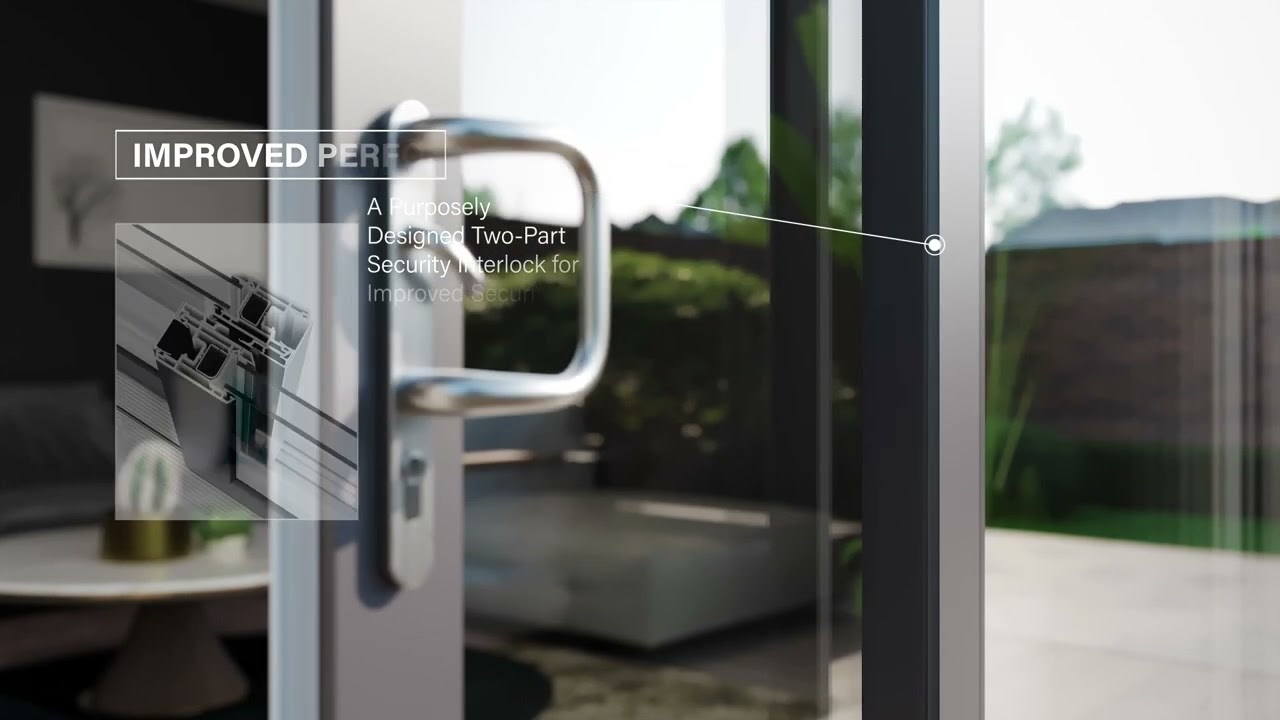

We designed a brand-new two-part interlock, which not only serves as an added security measure for PAS 24, but also provides both the fabricator and installer with a far more simpler solution. It improves the fabrication and installation time, whilst also allowing greater flexibility for adjustments when on site.

An aluminium low threshold has also been added to the patio door for Document M compliance. The new low threshold has a height of just 20mm compared to a full PVCu frame and cill at 80mm, thus providing easy access and egress. Aesthetically, it also improves the look and enhances the appeal of the patio door.

Another desirable upgrade comes in the form of the locking system. The addition of a 12 point shootbolt lock adds to the overall security passing the requirements of PAS 24 with relative ease.

An attractive infill bar between the keeps provides a clean finish to the locking mechanism.

The upgrades to the MASTERslide patio door certainly provide you with a modern sliding door option that meets the requirements of todays discerning homeowner.


Enhanced Security

The perfect secure, sliding door solution to your next project

Our MASTERslide Patio Door System has been rigorously tested to PAS 24 and Secured by Design, thus Building Regulation Document Q and SBD compliant.

Selecta Systems window and door products have been designed to conform with the standard for enhanced security performance, which includes testing for air and water tightness and wind loading.

Our BSi Kitemark accreditation reflects high industry standards, where tests expose the products to various extremes when installed, to demonstrate conformity, which reflects the premium quality of profiles that are extruded by the company.


Thermal Performance

Designed to enhance the thermal efficiency of your next project

Our MASTERslide multi-chambered patio doors achieve Building Regulations Approved Document L and Future Homes Standard energy ratings and U values without adding unwanted expense.

Reducing energy bills and making the home more thermally efficient is high on the list of most homeowners. Understanding that fitting the right combination of profile and glass unit is of immense importance.

Excellent U Values can be achieved with a 4/20/4 28mm double-glazed unit, when used with our MASTERslide patio door profiles.

In Partnership With

We have and continue to work closely with the team at Clayton Glass, achieving excellent U Values with both 28mm DGU’s and 40mm TGU’s. All of the above U Values have been achieved using 4mm glass, thus providing our fabricators and installers with a more cost effective solution when it comes to U Values.

Find out more about the partnership benefits of working with Selecta and Clayton Glass by contacting Clayton Glass directly

Technical Information

1. Frame & Threshold

Aluminium low threshold or full PVCu frame. PVCu multi-chambered for improved thermal efficiency and performance. Our PVCu frames are also 100% lead free!

2. High Security

12 point security locking system with PAS 24 & Secured By Design options available. Contact our Technical Department for further information.

3. Glazing Options

28mm double glazing for cost effective energy efficient patio doors

4. Two Part Interlock

Two part security interlock system available for PAS 24 and Secured By Design compliance. Fabricator and fitter friendly too!

5. Gaskets & Seals

The gaskets and weatherseals are co-extruded within the frames to provide a weathertight seal - no heat loss or leaks!

Fabricator & Fitter Friendly

Fully integrated chamfered and sculptured profile system designed for low stock holding, simple fabrication and easy installation.

PAS 24

Building Regulations Document Q Compliant

ENERGY RATING

Achieve a U Value of 1.4 W/(m2K) with a 28mm DGU

WEATHER TIGHTNESS

800X Pa Exposure Category

SECURED BY DESIGN

Secured By Design Compliant

  • Multi-chambers delivering optimal thermal performance
  • Slimline package, low sightline and high performance weather seals for improved insulation and weather protection.
  • 28mm DGU's to give you the ability to fabricate cost-effective, energy-efficient doors.
  • 2, 3 or 4 pane configurations with optional midrail to accomodate a letterplate.
  • PAS24 and Secured by Design enhanced security options.
  • Part M compliant aluminium low threshold or full PVCu options.
  • Fabricator and fitter friendly two part security interlock
  • Fitter friendly knock-in beads for speedy installation and easier glazing
  • Available in 18 colourfoil finishes, which are available on one or boths sides, giving you 36 colour-ways.

MASTERslide PATIO DOOR - LENGTH 5600mm (MAX) x HEIGHT 2400mm (MAX) INC.CILL

Air Permeability Classification

3

Water Tightness Classification

3A

Resistance to Wind Resistance

A3

Exposure Category in Accordance with BS 6375 Part 1

1200 Pa

MASTERslide PATIO DOOR - LENGTH 5600mm (MAX) x HEIGHT 2400mm (MAX) INC.CILL

Dynamic Closing Force

Class 3

Disengage Hardware

Class 2

Engage Hardware

Class 2

Commence Opening

Class 2

Lock Hardware

Class 4

Resistance to Repeated Opening & Closing

Class 4 - 50,000 Cycles

Unlock Hardware

Class 4

Operating Forces

Class 1

MASTERslide PATIO DOOR - LENGTH 5600mm (MAX) x HEIGHT 2400mm (MAX) INC.CILL

Fabrication and Installation

Fabricated and installed in accordance with the latest issue of the controlled Selecta Systems technical manual.

System Description

The door assemblies are horizontal sliding up to four leaves with two outer leaves consisting of fixed leaves, internally beaded with BS EN 1279-2 compliant IGU(s), laminated on one pane to class P1A, with standard PVCu threshold or aluminium low threshold and of otherwise fully welded construction. Doors are classified as D.

Hardware

ERA patio 12 point locking system and ERA patio handle combined with a TS007 certified 3* cylinder.

Profiles

Outer frame 8740. Sash 8741. Reinforcing 8750/1504 frame, 8759/8751 sash.

CHAMFERED BEAD

SCULPTURED BEAD

BEADING OPTIONS TO COMPLIMENT MASTERslide PATIO DOORS

The MASTERslide Patio Door profiles have been designed to compliment our windows and doors. We provide a single lead bead with a co-extruded bubble gasket for excellent compression and weather seal.

The 28mm double glazing beads are available in both chamfered and sculptured to complimented the ADVANCE 70 suite of window and door profiles.

TWO PART INTERLOCK

The two part interlock not only has added security benefits, but is also fabricator and fitter friendly.

ALU. LOW THRESHOLD

The aluminium low threshold option is Document M compliant for easy access and egress and stands at just 20mm in height.

12 POINT SECURITY LOCK

The 12 point security locking option is PAS 24, Document Q and Secured By Design compliant for enhanced security.

PAS 24 SECURITY

The MASTERslide patio door is PAS 24 compliant with either a full PVCu frame or with our aluminium low threshold.

Patio Door Configurations

2 PANE CONFIGURATION 1
2 PANE CONFIGURATION 2
2 PANE CONFIGURATION 3
3 PANE CONFIGURATION 1
3 PANE CONFIGURATION 2
3 PANE CONFIGURATION 3
3 PANE CONFIGURATION 4
3 PANE CONFIGURATION 5
4 PANE CONFIGURATION 1

Colour Options

Standard Collection

Consisting of the most popular colour combinations.

Premium Collection

Consisting of on-trend, traditional and modern colours and grained effects.

 ADVANCE 70 COLOUR OPTIONS

Whilst many favour the bright appearance of brilliant white window frames, the emergence of coloured and more authentically grained profiles has captured the imagination of homeowners.

We offer a wide range of colour options, which have been put together to make the perfect palette for your next project. With 18 Colourfoil finishes, available on the external or internal face only or both sides, the collection provides you with 36 colourways.

With modern and traditional shades complimented with authentic wood like finishes, Colourfoil adds that finishing touch to any property. Our colour collections provide you with a fantastic palette of colour options for your next project, whatever the style, period or location.

Grained or Smooth? What is the difference?

Looking to Offer More Colour Options?

Kolorseal offer a comprehensive palette of colours for customers who want something different

Manufacture our range of products in virtually any colour you can imagine!

We have teamed up with award winning colour coating specialist, Kolorseal Ltd, meaning we can now offer our fabrication partners the chance to manufacture their range of products in virtually any colour you can imagine.

We believe with consumers now looking to personalise their homes to reflect their lifestyles, colour is an aspect that will give you an advantage in a fiercely competitive market.  It is a huge selling point to offer, that will put our fabrication partners ahead of their competitors and we believe will inspire homeowners with added value benefits.

Established 20 years ago, Kolorseal provides excellent services with a five day turnaround guarantee.  Attention to detail and customer service is paramount for the company, headed up by Deborah Hendry who has extensive knowledge of the sector.

From window and door frames to composite doors and matching rainwater products, Kolorseal can give our fabrication partners that colourful edge.

To keep things simple, visit www.kolorseal.co.uk and mention that you are a Selecta fabricator!


Aesthetics

Creating that heritage and traditional look

Create the heritage look with Urban Bar, the latest innovation from RegaLead. This clip-on aluminium astragal bar has been designed to give fabricators a cost-effective, high-performance solution for creating the ‘Crittal’ aesthetic.

Designed for both aluminium and PVCu windows and doors, Urban Bar can upgrade a standard product with a stunning industrial-style finish, creating awe-inspiring spaces that seamlessly blend nostalgia and contemporary appeal.

The aluminium astragal bars are permanently attached to the glass using a patented, sprung steel clip system to enable easy bar positioning which counteracts the effects of thermal expansion and contraction, ensuring the bars stay put for the lifetime of the door.

The flat aluminium bars provide an outstanding, authentic appearance both inside and out, and the internal Duplex bars make the single-sealed unit look like it has been created from individual panes.

View & Download the Brochure

Patio Door Kits

EXCLUSIVE TO SELECTA CUSTOMERS ONLY!
MASTERslide Patio Doors are available in kit format! Simply choose your height and width requirement and we package and box up everything you need to fabricate your patio door, thus reducing profile and hardware stocks!
