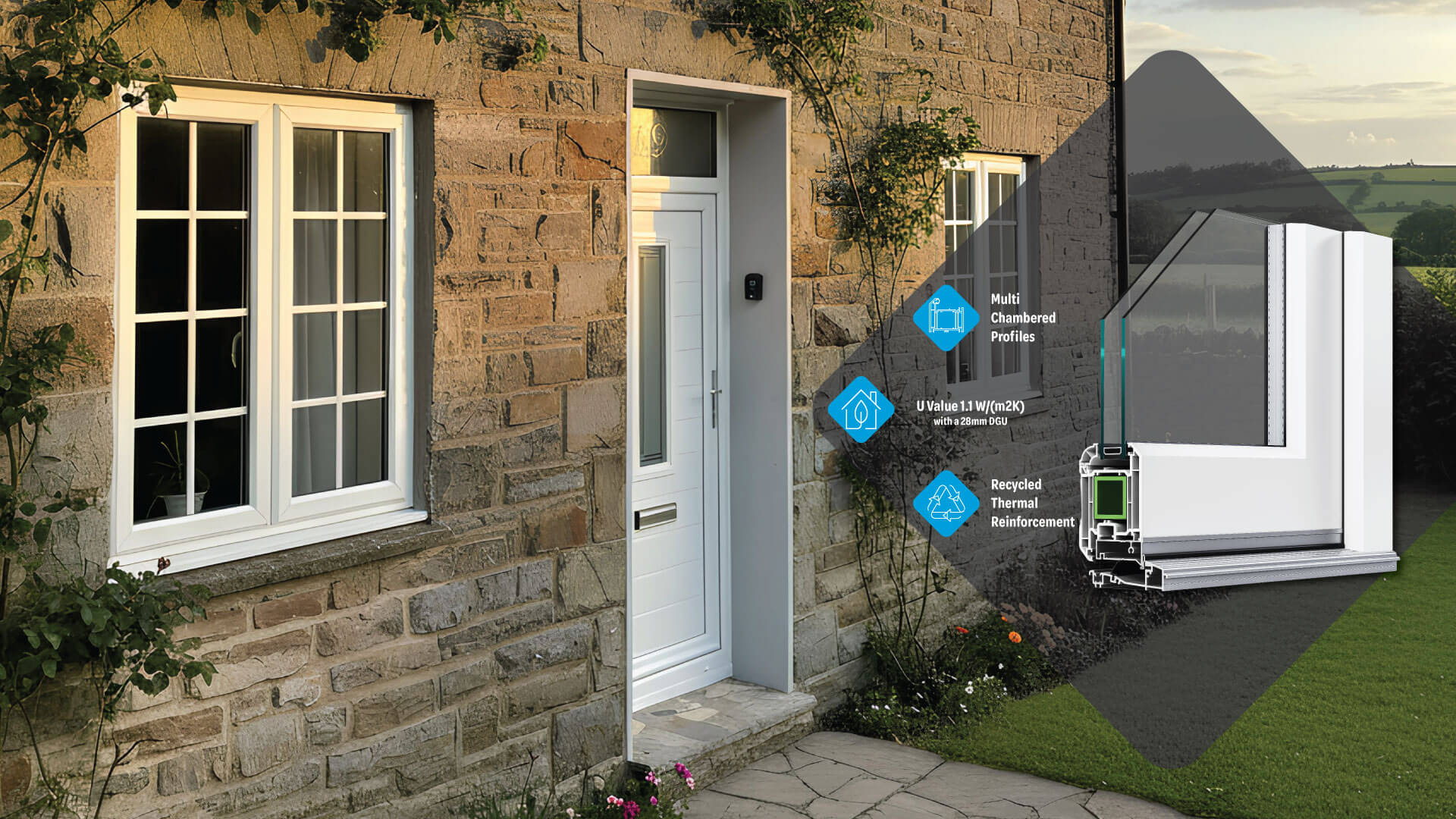

MULTI-CHAMBERED SYSTEM FOR IMPROVED THERMAL PERFORMANCE

RESIDENTIAL DOORS

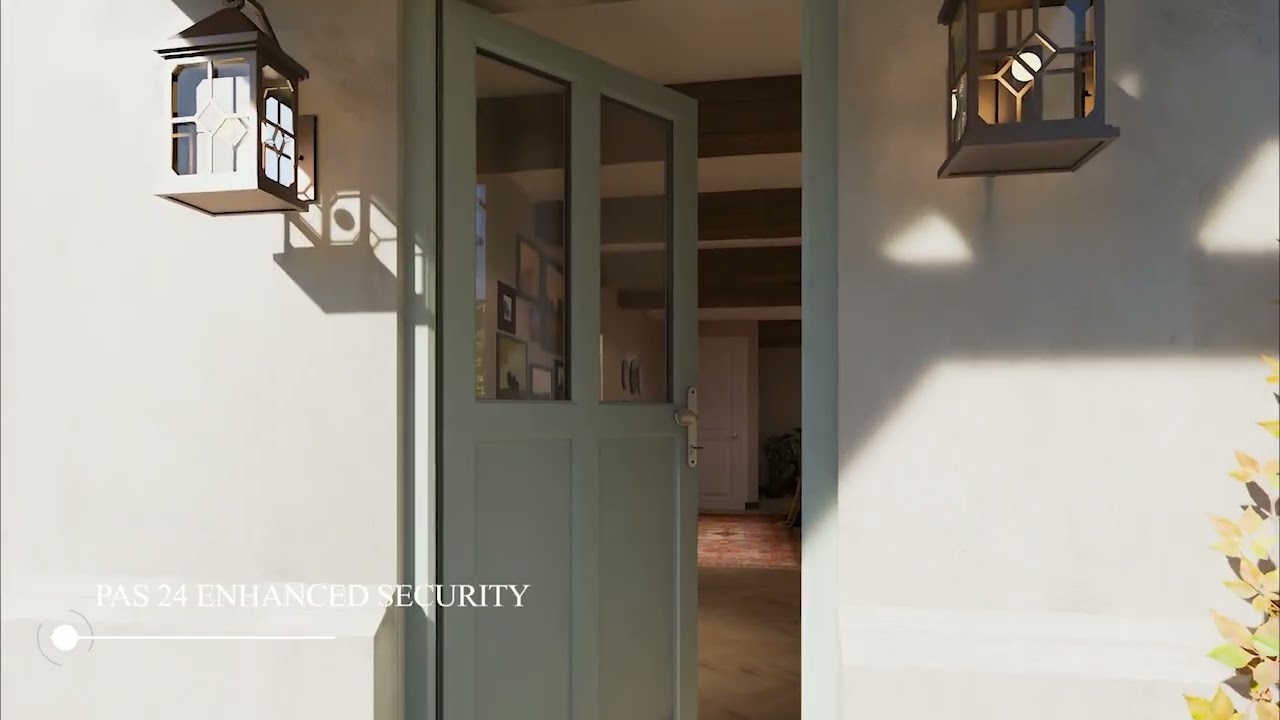

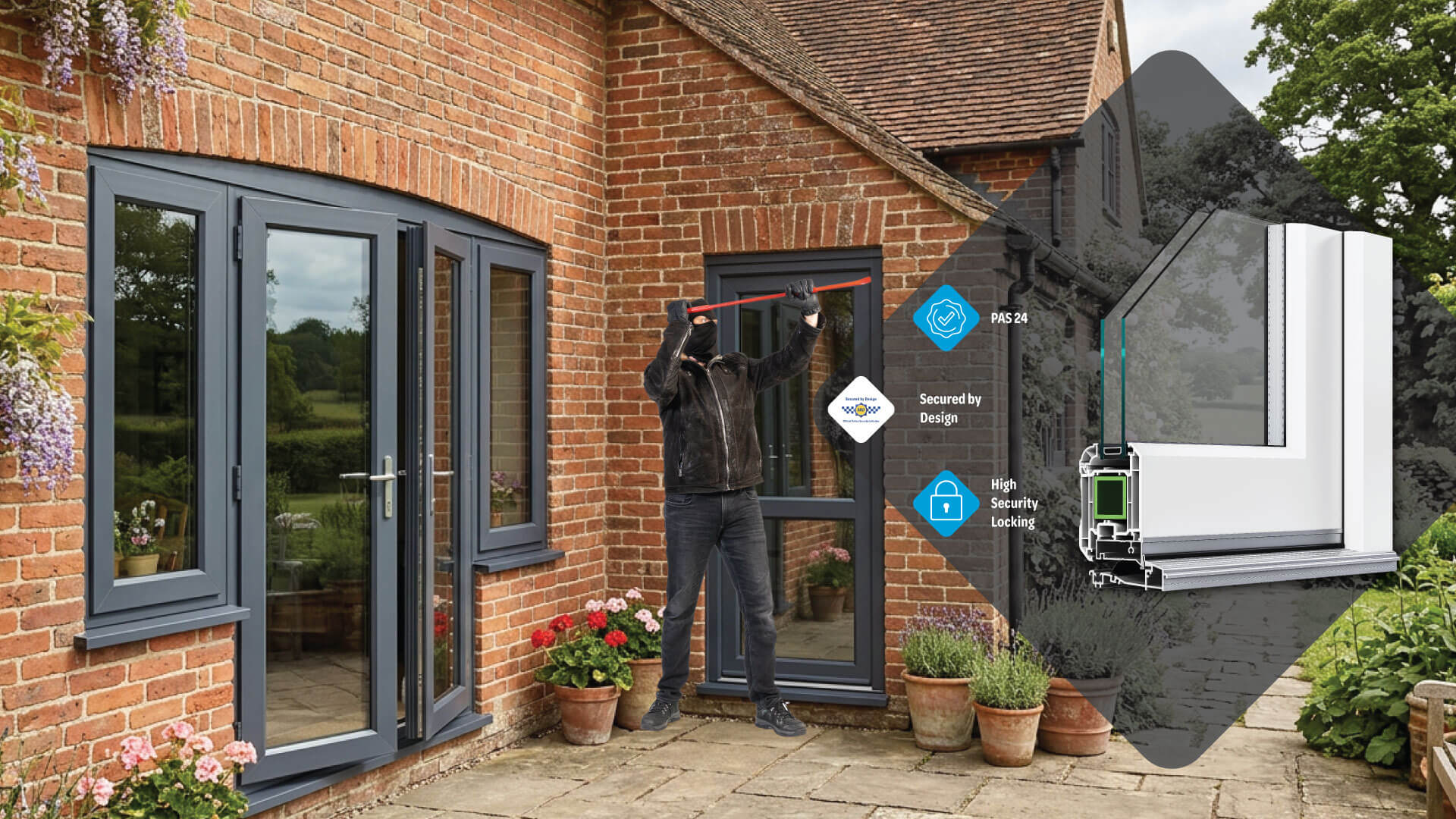

ENHANCED SECURITY TO PAS 24 & SECURED BY DESIGN

PREV
NEXT

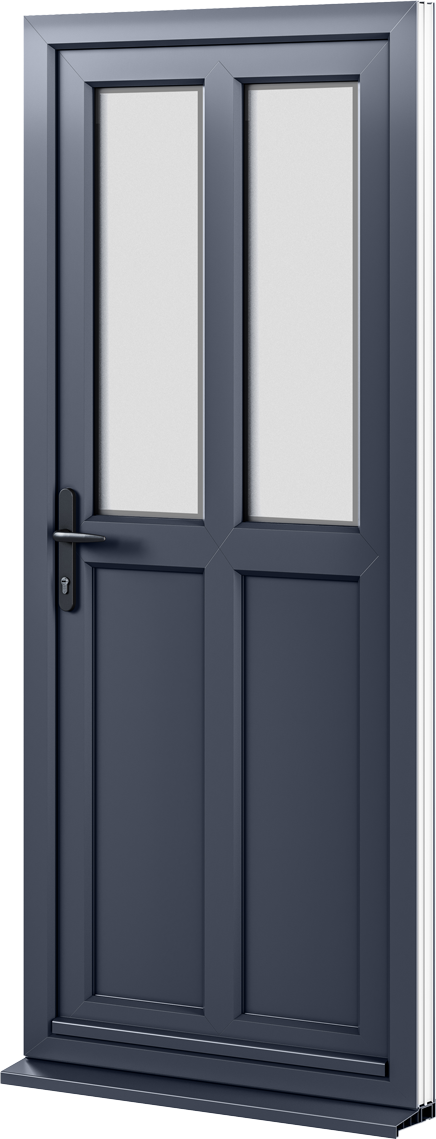

ADVANCE 70 RESIDENTIAL DOORS

Modern technology and performance that provides you with a secure, thermally efficient and elegant entrance to any any property.

A fully integrated window and door profile system





Our ADVANCE 70 Residential Doors compliment the chamfered or sculptured windows, with an array of modern and traditional styles and configurations available. With full frame or Part M compliant low threshold options, combined with PAS 24 enhanced security, the ADVANCE 70 residential door provides you with a quality entrance door to any property.

The ADVANCE 70 System is a fully-integrated, 70mm window and door profile system with both sculptured and chamfered variations. With double and triple glazing options the 5 chambered system has been intelligently designed to meet all requirements for improved thermal efficiency.

The ADVANCE 70 System benefits from large reinforcement chambers, where Selecta steel sections can be inserted for additional strength and rigidity when required, or increased thermal performance when combined with our RTR (Recycled Thermal Reinforcement) Bar.

The ADVANCE 70 System also offers enhanced security options and when correctly specified, residential doors are PAS24 and Secured by Design approved as standard.

TECHNICAL INFORMATION

1. PVCu FRAME

Multi-chambered for improved thermal efficiency and performance. Our PVCu frames are also 100% lead free!

2. HIGH SECURITY

PAS 24 & Secured By Design options available. Contact our Technical Department for further information.

3. GLAZING OPTIONS

Double and triple glazing options - 24mm, 28mm and 40mm.

4. RTR BAR

Use RTR (Recycled Thermal Reinforcement) Bar to increase the thermal performance of your windows.

5. GASKETS & SEALS

The gaskets and weatherseals are co-extruded within the frames to provide a weathertight seal - no heat loss or leaks!

FABRICATOR & FITTER FRIENDLY

Fully integrated chamfered and sculptured profile system designed for low stock holding, simple fabrication and easy installation.

  • 5 thermal chambers delivering optimal thermal performance to achieve A+ WER's.
  • Low sightline and high performance weather seals for improved insulation and weather protection.
  • 24mm, 28mm and 40mm glazing options to give you the ability to fabricate cost-effective, energy-efficient doors.
  • Open in or out styles, with or without a midrail, for a variety of installations.
  • PAS24 and Secured by Design enhanced security options.
  • Part M compliant low threshold or full PVCu options.
  • Fitter friendly knock-in beads for speedy installation and easier glazing
  • Available in 17 colourfoil finishes, which are available on one or boths sides, giving you 34 colour-ways.

SINGLE LEAF & FRENCH DOOR SET (LOW THRESHOLD) - (L) 1800mm x (H) 2100mm

Air Permeability Classification

3

Water Tightness Classification

3A

Resistance to Wind Resistance

A3

Exposure Category in Accordance with BS 6375 Part 1

1200 Pa

SINGLE LEAF & FRENCH DOOR SET (LOW THRESHOLD) - (L) 1800mm x (H) 2100mm

UK Category of Duty

Medium

Static Torsion

2

Operating Forces

1

Soft and Heavy Body Impact

2

Mechanical Strength

2

Hard Body Impact

2

Vertical Load

2

Resistance to Repeated Opening & Closing

4 - 50,000 Cycles

ADVANCE 70 SINGLE RESIDENTIAL AND FRENCH PVCu DOORSET

Fabrication and Installation

Fabricated and installed in accordance with the latest issue of the Selecta Systems controlled technical manual.

System Description

The door assemblies are single or double leaf open in or out, internally beaded with BS 1279-2 compliant IGU(s), laminated on one pane to class P1A, with or without midrails and glass above and below or fully glazed. With standard threshold or Stormguard low threshold (open out only) and of otherwise fully welded construction. Doors are classified as D.

Hardware

Yale products throughout comprising hinges, quad guard hinge protectors, lockmaster multi-point lock with French door slave lock (where required), keeps, roller extension, high security shootbolt set (double doors only) and double keeps (double doors only) and a TS007 3* cylinder.

Profiles

Outer frame 1710. Sash 1715. Reinforcing 1776 - frame and 1777 - sash.

28mm CHAMFERED BEAD

28mm SCULPTURED BEAD

40mm CHAMFERED BEAD

40mm SCULPTURED BEAD

BEADING OPTIONS TO COMPLIMENT ADVANCE 70 WINDOWS & DOORS

The ADVANCE 70 suite of profiles are available in both a chamfered and sculptured finish. To compliment the windows and doors, we provide a single lead bead with a co-extruded bubble gasket for excellent compression and weather seal.

The 28mm double glazing and 40mm triple glazing beads are available in both chamfered and sculptured to complimented the ADVANCE 70 suite of window and door profiles.

COLOUR OPTIONS

The Colourfoil Collection - 17 traditional and modern colourfoil finishes providing you with 34 colourways

The emergence of coloured and more authentically grained profiles has captured the imagination of homeowners, especially when it comes to entrance doors.

We offer a wide range of colour options, which have been put together to make the perfect palette for your next project. With 17 colourfoil finishes, available on the external or internal face only or both sides, the collection provides you with 34 colourways.

With modern and traditional shades complimented with authentic wood like finishes, colourfoil adds that finishing touch to any property. Our colour collections provide you with a fantastic palette of colour options for your next project, whatever the style, period or location.

The standard collection - Consists of the most popular colour combinations.

The premium collection - Consists of on-trend, traditional and modern colours and grained effects.

Add colour and elegance to your next project








STANDARD COLLECTION

PREMIUM COLLECTION

GRAINED AND SMOOTH COLOURS - WHAT'S THE DIFFERENCE?

Our grained effect colours have been designed to replicate the texture and look of wood. The texture is embossed within the coloured foil to add depth and realism to the colour shade or wood effect.

Our smooth effect colours have been created to replicate the smooth finish of aluminium. Dependant on the colour shade, this will either be complimented by a matt or semi-gloss finish to provide you with a clean finish.
